Setting up the FedEx Shipping Workstation Installation for EDI/Packaging Manager.

This help article provides two setups. 1) Importing a pre-built mapping template or 2) Manually creating the ODBC mappings for FedEx Ship Manager.

Acctivate Shipping Workstation integration with FedEx streamlines EDI order processing. This configuration is for EDI/Packaging Manager setup of the FedEx Ship Manager ONLY. The following setup procedure is to set-up FedEx Ship Manager to work with the Acctivate EDI/Packaging Manager module. If you have not purchased this module please refer to the FedEx Shipping Workstation Installation for Non EDI/Packaging Manager setup.

Configuring FedEx Ship Manager to Import data from Acctivate using pre-built template files:

  1. Make certain that you complete the ODBC setup before you begin the FedEx integration process. The ODBC name must be titled AcctivateODBC
  2. Download the Fedex Templates here FEDEX
  3. If you are using the EDI/Packaging Manager setup, use the file named AcctivateEDI
  4. Open File explorer and go to the following path
    C:\ProgramData\FedEx\Integration\Profiles
  5. Save the "AcctivateEDI" named file in this directory.
  6. Close and Open FedEx Ship Manager. From the top drop-down menu, click Integration.  The Acctivate template should appear on the drop down, select it.
    fp15-1
  7. Click Clear Fields in the left corner and a small window reading Lookup Value will appear.
  8.  Enter an order number from Acctivate and check to ensure it imports correctly.
    fp15-2

Manually Configuring FedEx Ship Manager to Import data from Acctivate:

  1. First, make certain that you have completed the ODBC setup (This must be completed before you begin the FedEx integration process.)
  2. Next, you must be logged into your shipping workstation, launch the FedEx Ship Manager software.
    FedexEDI1
  3. From the top drop-down menu, click Integration > FedEx Integration Assistant. (If this is selection is grayed out and not available you must contact FedEx)
    FedexEDI2
  4. The FedEx Integration Assistant window will open outside of FedEx Ship Manager.
    Please note that the Integration Assistant window is organized in a tab format.
    Click the Continue button located near the bottom of the screen.
    FedexEDI3
  5. The next screen will be the Welcome > Before You Begin (tab) screen.
    Read this page and then click Continue.
  6. On the Begin > Create window, select the Create a New Profile radio button.
    FedexEDI4
  7. On the Begin > Integration Type window select the option for Both Import and Export.
    FedexEDI5

    Click Continue.
  8. On the Import > Source window, click the ODBC radio button
    FedexEDI6

    In the Data Source name sub-box and select the Acctivate DSN name. (This is the DSN company name that you just created)

    FedexEDI7

    Click Continue.

  9. You will then receive a pop-up “error message” select the “Login” button.
    FedexEDI8

    Then enter the user name: sa

    Password: (Contact support if you need assistance)

    FedexEDI9

    (if you originally installed Acctivate 6.3 or later)

    The password may have been changed during the installation or configuration of SQL Server. If these settings do not work, please contact your database or network administrator to gain access to this database.

    Click the OK button.

  10. You will automatically be moved to the Import > Shipping window.
    FedexEDI10

    Select Single Edit (furthest right option) on the horizontal image/radio button.  Click Continue.

  11. Next, you will see the Import > Lookup window. Click the After I enter a Lookup Value radio button (default). Click Continue.
    FedexEDI11
  12. The Import > Information window is next. Select the All Fields link from the bottom of the list. A small pop-up window with a header reading All Fields will appear.
    FedexEDI12

    The following boxes should be checked in this window.

    Section Check Box
    Recipient Address Address 1
    Recipient Address Address 2
    Recipient Address City
    Recipient Address Company
    Recipient Address  Contact Name
    Recipient Address Country
    Recipient Address Phone
    Recipient Address Postal Code
    Recipient Address State/Province
    Package Reference Customer Reference
    Package Miscellaneous P.O. Number
    Package Service Type Service Type
    Package Weight Weight
    Special Services Ship Alert Recipient Email

    Click OK when you are finished, then click Continue.

    If you are NOT using the Acctivate Add-on module for Package Manager or EDI Manager, please refer to the Non EDI Shipping Workstation Interface Installation Guide.

  13. The next tab is the Import > Match section.  This window allows you to match FedEx Ship Manager fields to fields in your data source.

    This is the most critical step in the “mapping” or “matching” process, as you connect these fields together. (your screen may differ slightly)

    FedexEDI13

    You will use the ‘ShipmentSummary‘, ‘ShipmentPack‘ and ‘Orders‘ to map the following fields.

    Switch the table by selecting it from TABLE dropdown.

    Then Drag the Acctivate field  into the blank space beside the FedEx field to map them:

    For QuickBooks users:

    Section Acctivate Table Acctivate Field FedEx Field Default
    Recipient: Address ShipmentSummary ShipToAddress2 Address 1
    Recipient: Address ShipmentSummary ShipToAddress3 Address 2
    Recipient: Address ShipmentSummary ShipToCity City
    Recipient: Address ShipmentSummary ShipToAddress1 Company
    Recipient: Address ShipmentSummary ContactName Contact Name
    Recipient: Address ShipmentSummary ShipToCountry Country ‘US – United States’
    Recipient: Address ShipmentSummary ContactPhoneNumber Phone
    Recipient: Address ShipmentSummary ShipToZip Postal Code
    Recipient: Address ShipmentSummary ShipToState State/Province
    Package:  Misc ShipmentPack PackageID Customer Reference
    Package:  Misc ShipmentSummary PackagingCode Package Type
    Package:  Misc ShipmentPack PO PO Number
    Package:  Misc ShipmentSummary CarrierService Service Type
    Package:  Misc ShipmentSummary ShipmentNumber Shipment ID
    Package:  Misc ShipmentPack Weight Weight 1 *
    Special Services:  Ship Alert Orders ContactEmailAddress Recipient Email (OPTIONAL)

    For CYMA users:

    Section Acctivate Field FedEx Field Default
    Recipient: Address ShipToAddress1 Address 1
    Recipient: Address ShipToAddress2 Address 2
    Recipient: Address ShipToCity City
    Recipient: Address ShipToDescription Company
    Recipient: Address ContactName Contact Name
    Recipient: Address ShipToCountry Country ‘US – United States’
    Recipient: Address ContactPhoneNumber Phone
    Recipient: Address ShipToZip Postal Code
    Recipient: Address ShipToState State/Province
    Package:  Misc OrderNumber Customer Reference
    Package:  Misc CarrierService Service Type
    Package:  Misc PackagedWeight Weight 1*
    Special Services:  Ship Alert ContactEmailAddress Recipient Email

    * There is a known issue in FedEx with saving the defaults for Carrier Service, Package Type and Bill To if you do not have a default value for Weight also mapped.

  14. Once you have matched all the fields, remain in the Import > Match window and click the Select Index button near the bottom.
    FedexEDI14
  15. The Primary Index window will pop-up.
    FedexEDI15

    Click to map GUIDShipment and  GUIDShipment from ShipmentSummary to ShipmentPack  (*PLEASE NOTE: You may be required to map ShipmentNumber to ShipmentNumber, due to a known bug in the FedEx Software not allowing GUIDShipment to be linked with GUIDShipment)

    Click to map GUIDOrder and GUIDOrder from Orders to ShipmentPack

    Click to map ShipmentNumber from ShipmentSummary and Lookup Dialog Box  (lines will appear, signifying that they have been mapped together).

    Click OK.

    Click Continue.

  16. The Import > Conversion window will automatically open. Nothing needs to be done in this window. Click Continue.

Configuring FedEx Ship Manager to Export data to Acctivate

  1. The Export > Destination window will be displayed next. Scroll down and select the ACCTivate DSN company name that you created and used in the first procedure. Click Continue.
    FedexEDI16
  2. The Export > Method window is displayed next.

    Under the question, “When do you want to export to your data source?” select Each time a shipment is completed. Check the option to ‘Also Export each time a package is deleted’. Under the second question, “How do you want to update your data source?” select Insert a new record.

    FedexEDI17

    Click Continue.

  3. The next window is the Export > Information window. Select the All Fields link from the bottom of the list. A small pop-up window with a header reading All Fields will appear.

    FedexEDI18

    The following boxes should be checked off in this window.

    Section Check Box
    Tracking Number Tracking Number
    Charges – Customer Rate Net Charge
    Package – Reference Customer Reference
    Package – Miscellaneous Declared Value
    Package – Miscellaneous Delivery Date
    Package – Service Type Service Type
    Package – Miscellaneous Ship Date
    Package – Billing Bill Transportation To
    Package – Weight Weight
    Sender – Miscellaneous Account Number

    Click OK when you are finished, then click Continue.

  4. The next window is the Export > Match window. This window allows you to match the export fields from FedEx Ship Manager fields to fields in your data source. Select ‘tbOrderPackagesText’ from the TABLE dropdown.

    FedexEDI19

    You will receive a popup asking you to set all unselected tables as: tbOrderPackagesText. Click YES.

    Then Drag the Acctivate field  into the blank space beside the FedEx field to map them:

    Section Acctivate Field FedEx Field
    Tracking Number TrackingNumber Tracking Number
    Charges – Customer Rates ShippingCharge Net Charge
    Package – Miscellaneous PackageID Customer Reference
    Package – Miscellaneous DeclaredValue Declared Value
    Package – Miscellaneous ScheduledDeliveryDate Delivery Date
    Package – Miscellaneous CarrierService Service Type
    Package – Miscellaneous ShipmentDate Ship Date
    Package – Miscellaneous Weight Weight
    Recipient – Miscellaneous AccountNumber Account Number

    If you receive the pop-up message when mapping order number to PO Number, ignore it. It is only for informational purposes and will not affect your mapping.

    FedexEDI20
  5. Once the mapping has been completed click Continue.
  6. The Export > Conversion window will automatically open. Nothing needs to be done in this window. Click Continue.
  7. The Finish > Summary window will open next.

    This page will show you the selections that you have made in your matching process.

    Under the export summary section, review all of the information to make certain that the export matches have the table set to tbOrderPackagesText.

    After you have thoroughly reviewed this page, click Continue.
  8. The Finish > Instructions window is next.

    Click Finish.
  9. A window will pop-up reading “Would you like to save the changes…
    FedexEDI21
    Click Yes.
  10. Another window will pop-up reading “Enter the name of your integration profile…
    FedexEDI22
    Type ACCTivate

    Make certain that there is no punctuation in the above name. Click Save.
  11. The FedEx Integration Assistant will close automatically.

In Acctivate Configuration Manager, verify the Carrier Service Setup

Before using the FedEx Ship Manager and Acctivate to perform a shipment, you mush define the FedEx carrier services inside of Acctivate.

  1. To do this, an authorized user must add these carrier services in the Acctivate Configuration Manager (File > Configuration Manager).

    If you are using an older version of FedEx (prior V10.6.1)

    FedexEDI23

    For newer versions of FedEx (v10.6.1 or higher from the FedEx Ship Manager Guide)

    FedexEDI24
    If FedEx is not already defined as a carrier then double-click the Sales Order folder and select Carrier.

    The Carrier section of the Configuration Management window will open.

  2. Click the Edit button and enter FedEx as a Carrier. Make certain to check the Active box.

    Click the Save button.
  3. Next, open the Carrier Service section of the Configuration Management window.

    Click the Edit button and add the carrier services (in the table below).
    FedexEDI25

    Note: Make certain that FedEx is selected in the Carrier column and that the Active box is checked.

    The new carrier services will appear in the Service type field of Ship Manager (as shown to the below).

    FedexEDI26

    Before importing sales orders into the Ship Manager these need to be saved with the new carrier service codes.

Daily Use

  1. Open FedEx Ship Manager.

    On the top drop-down menu click Integration > Acctivate.FedexEDI27
  2. Click the Clear Fields button in the lower-left corner of the screen.

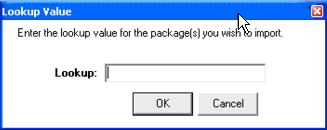

  3. A small window reading Lookup Value will appear.
    FedexEDI28

    Enter the Acctivate Shipment number. Click OK.
